Solid tantalum capacitor, 100µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features 75mΩ ESR, 6% dissipation factor, and a maximum operating temperature of 125°C. Surface mount component with a 6032 metric case code, measuring 6mm x 3.2mm x 2.6mm. Packaged in tape and reel.
Package2312
Capacitance100uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TPSC107M006R0075 technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | 2312 |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 75mR |
| Features | General Purpose |
| Height | 2.6mm |
| Height - Seated (Max) | 0.11inch |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TPS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSC107M006R0075 Datasheet
Download the complete datasheet for Kyocera TPSC107M006R0075 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

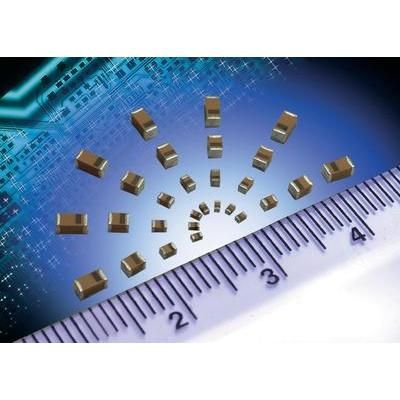

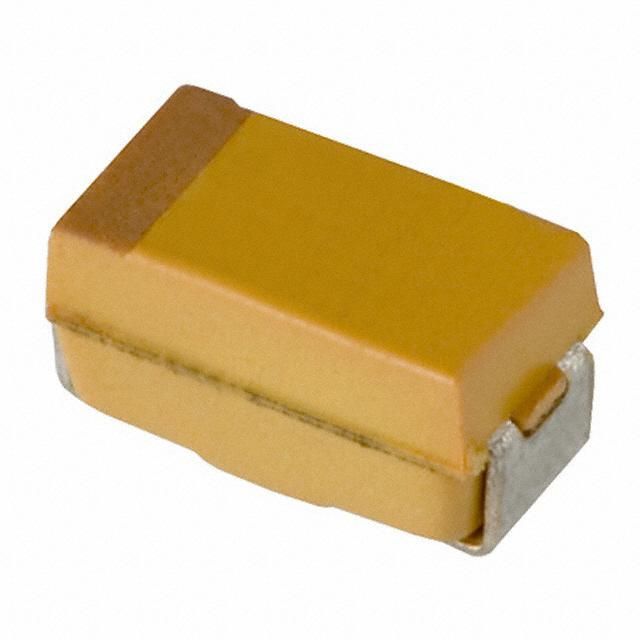

Product Images
