Solid tantalum capacitor, 100µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a low 75mΩ ESR and 125°C maximum operating temperature. Surface mountable with a 6mm x 3.2mm x 2.6mm molded case (6032 metric, 2312 imperial). Polarized construction with lead-free termination and tape and reel packaging.
PackageMolded
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TPSC107M010R0075 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
75mR
Features
General Purpose
Height
2.6mm
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
10uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSC107M010R0075 Datasheet
Download the complete datasheet for Kyocera TPSC107M010R0075 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

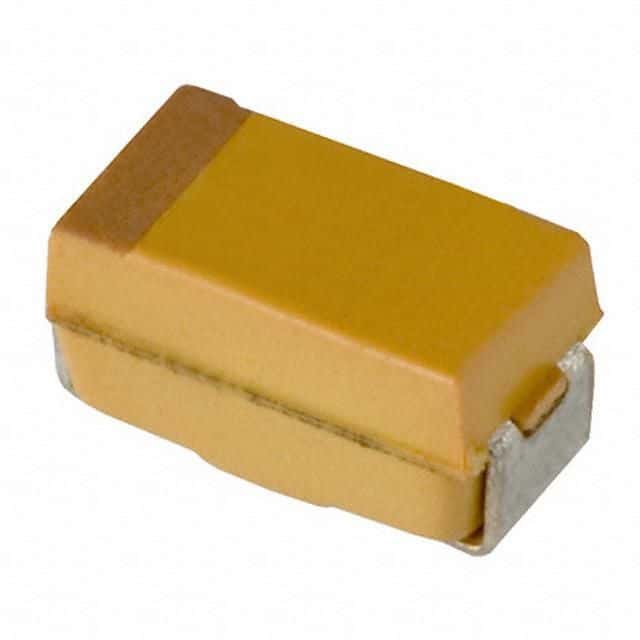

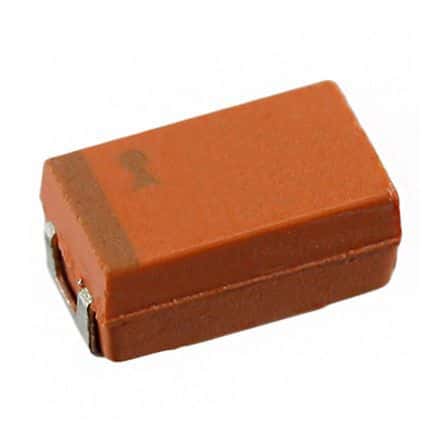

Product Images
