Surface mount tantalum capacitor, 220µF capacitance, 6.3V voltage rating. Features 10% tolerance, 100mΩ ESR, and 13.9µA leakage current. Operates from -55°C to 125°C in a 2312 (6032 Metric) molded case. RoHS compliant, lead-free construction.
PackageMolded
Voltage6.3V
Capacitance220uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TPSC227K006R0100 technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
13.9uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
Voltage Rating (AC)
6.3V
DC Rated Voltage
6.3V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSC227K006R0100 Datasheet
Download the complete datasheet for Kyocera TPSC227K006R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

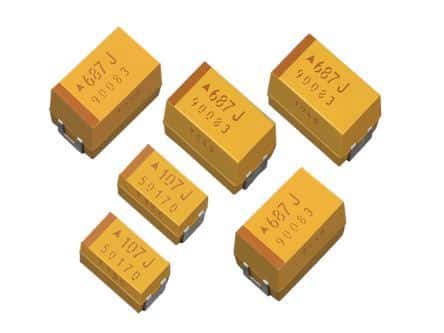

Product Images
