Solid Tantalum Capacitor, 100µF capacitance, 16V DC rated voltage, and 10% tolerance. Features a 125mΩ ESR, 6% dissipation factor, and 16µA leakage current. This surface mount component utilizes a 7343-31 metric case code (2917 imperial), measuring 7.3mm x 4.3mm x 2.9mm. Operating temperature range is -55°C to 125°C, with a ripple current rating of 438µA. Packaged in tape and reel, this RoHS compliant capacitor is designed for general purpose applications.
Package2917
Voltage16V
Storage2.9mm
Capacitance100uF
Quick Jump:
Technical Specifications
Kyocera TPSD107K016R0125 technical specifications.
General
Approvals
IEC
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
125mR
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
16uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
438uA
RoHS Compliant
Yes
Series
TPS
Size
2.9mm
Termination
SMD/SMT
Tolerance
10%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD107K016R0125 Datasheet
Download the complete datasheet for Kyocera TPSD107K016R0125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

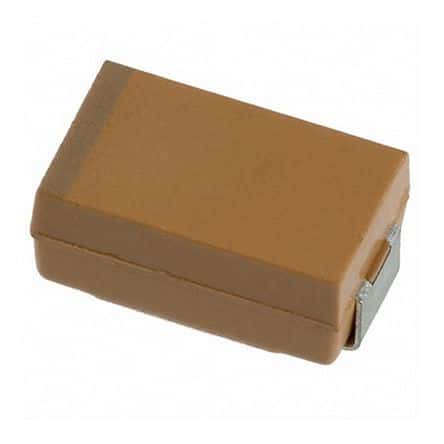

Product Images
