Surface mount tantalum capacitor, 100µF capacitance with 20% tolerance, rated for 10V DC. Features a 2917 (7343 metric) case size, 100mΩ ESR, and a maximum operating temperature of 125°C. This general-purpose component offers a low leakage current of 10µA and is RoHS compliant.
Package2917
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TPSD107M010R0100 technical specifications.
General
Approvals
IEC
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
10uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Ripple Current
490uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD107M010R0100 Datasheet
Download the complete datasheet for Kyocera TPSD107M010R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

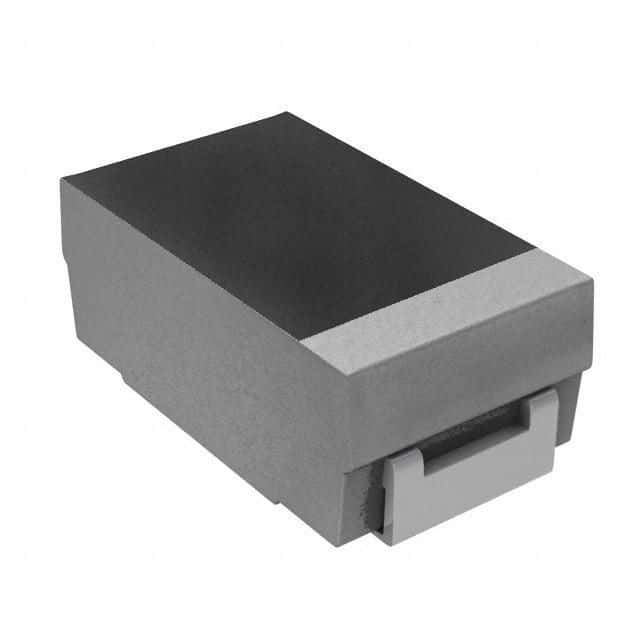

Product Images
