General purpose solid tantalum capacitor, 100µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a 7343 metric case code (2917 imperial), measuring 7.3mm length, 4.3mm width, and 3.1mm height. Offers 100mΩ ESR, 6% dissipation factor, and 16µA leakage current. Operates from -55°C to 125°C and is supplied on tape and reel.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TPSD107M016R0100 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
3.1mm
Lead Free
Lead Free
Leakage Current
16uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
490uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD107M016R0100 Datasheet
Download the complete datasheet for Kyocera TPSD107M016R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

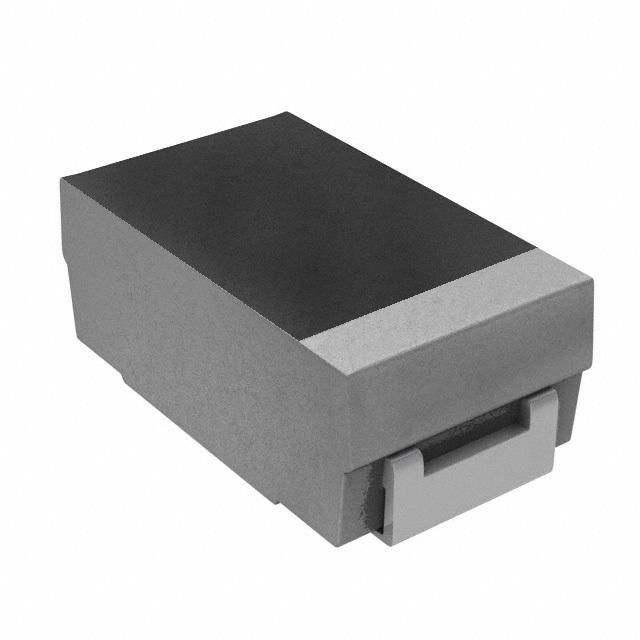

Product Images
