Surface mount tantalum capacitor offering 22µF capacitance with a 20% tolerance and 25V DC rating. Features a 2917 (7343 metric) case code, 200mΩ ESR, and 5.5µA leakage current. Operating temperature range from -55°C to 125°C, with a 6% dissipation factor. RoHS compliant and lead-free construction.
Package2917
Voltage25V
Capacitance22uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TPSD226M025R0200 technical specifications.
General
Capacitance
22uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
200mR
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
5.5uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
346uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD226M025R0200 Datasheet
Download the complete datasheet for Kyocera TPSD226M025R0200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

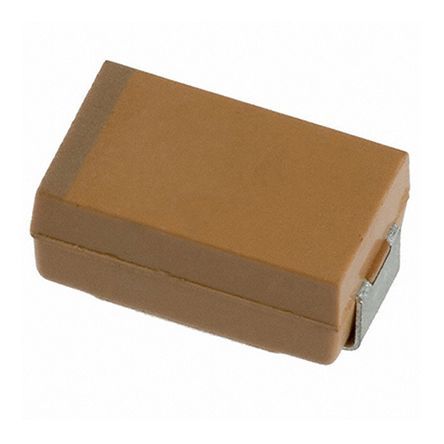

Product Images
