Solid Tantalum Capacitor, 33µF capacitance, 35V DC rated voltage, 10% tolerance. Features 300mΩ ESR, 11.6µA leakage current, and 283µA ripple current. D case (7343 metric, 2917 imperial) construction with dimensions 7.3mm (L) x 4.3mm (W) x 2.9mm (H). Operating temperature range from -55°C to 125°C. Surface mount, lead-free, RoHS compliant, packaged on tape and reel.
Package2917
Voltage35V
Storage2.9mm
Capacitance33uF
Quick Jump:
Technical Specifications
Kyocera TPSD336K035R0300 technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 300mR |
| Features | General Purpose |
| Height | 2.9mm |
| Lead Free | Lead Free |
| Leakage Current | 11.6uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 283uA |
| RoHS Compliant | Yes |
| Series | TPS |
| Size | 2.9mm |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Weight | 0.023634oz |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSD336K035R0300 Datasheet
Download the complete datasheet for Kyocera TPSD336K035R0300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

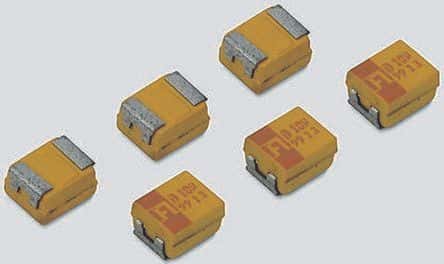

Product Images
