Surface mount tantalum capacitor with 470µF capacitance and 6.3V DC rated voltage. Features 10% tolerance, 200mΩ ESR, and a 12% dissipation factor. Operating temperature range from -55°C to 125°C. Housed in a 2917 (7343 metric) case code with a flat construction. RoHS compliant and lead-free.
Package2917
Voltage6.3V
Capacitance470uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TPSD477K006R0200 technical specifications.
General
Capacitance
470uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
200mR
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
29.6uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSD477K006R0200 Datasheet
Download the complete datasheet for Kyocera TPSD477K006R0200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

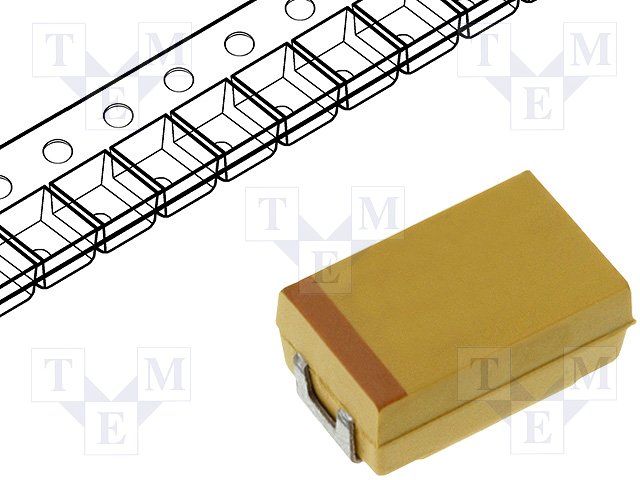

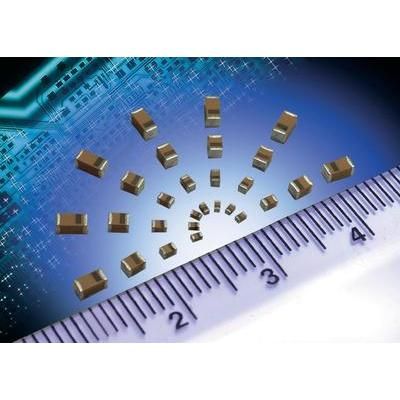

Product Images
