Solid Tantalum Capacitor, 100µF capacitance, 16V DC rated voltage, and 10% tolerance. Features 100mΩ ESR, 6% dissipation factor, and 16µA leakage current. Surface mountable in a 7343-43 (2917) metric/imperial case code, measuring 7.3mm x 4.3mm x 4.1mm. Operates from -55°C to 125°C, with RoHS compliance and IEC approval.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TPSE107K016R0100 technical specifications.
General
| Approvals | IEC |
| Capacitance | 100uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 100mR |
| Features | General Purpose |
| Height | 4.1mm |
| Lead Free | Lead Free |
| Leakage Current | 16uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 514uA |
| RoHS Compliant | Yes |
| Series | TPS |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.023634oz |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSE107K016R0100 Datasheet
Download the complete datasheet for Kyocera TPSE107K016R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

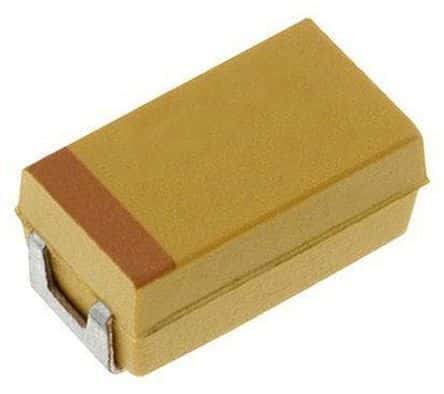

Product Images
