Solid Tantalum Capacitor, 330µF capacitance, 6.3V DC rated voltage, and 20% tolerance. Features 50mΩ equivalent series resistance (ESR) and a maximum operating temperature of 125°C. Surface mountable in a 2917 (7343 metric) case code, this general-purpose component is lead-free and RoHS compliant.
Package2917
Capacitance330uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TPSE337M006R0050 technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
ESR (Equivalent Series Resistance)
50mR
Features
General Purpose
Height
4.3mm
Height - Seated (Max)
0.169inch
Lead Free
Lead Free
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSE337M006R0050 Datasheet
Download the complete datasheet for Kyocera TPSE337M006R0050 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

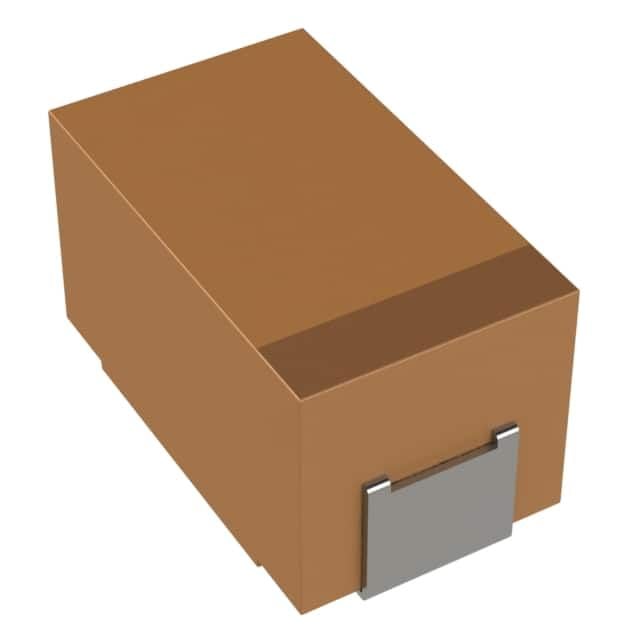

Product Images
