Surface mount tantalum capacitor with 330uF capacitance and 20% tolerance. Features a 6.3V DC rated voltage, 100mR ESR, and 20.8uA leakage current. Operating temperature range from -55°C to 125°C. Housed in a 2917 (7343 metric) case with a flat construction. RoHS compliant and lead-free.
Package2917
Voltage6.3V
Capacitance330uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TPSE337M006R0100 technical specifications.
General
Approvals
IEC
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
4.1mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
20.8uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
514uA
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSE337M006R0100 Datasheet
Download the complete datasheet for Kyocera TPSE337M006R0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

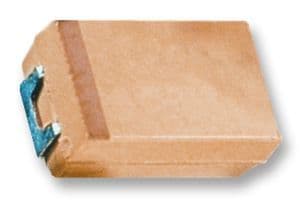

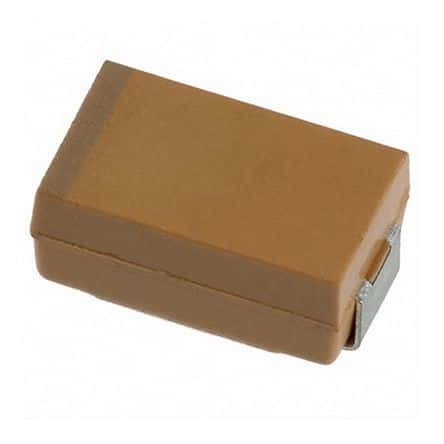

Product Images
