Surface mount multilayer chip varistor with 14V DC and 10V AC voltage ratings. Features a 32V clamping voltage and 1A clamping current, with a maximum surge current of 120A. Offers 900pF capacitance and 0.3J energy absorption in an 0805 (2012 metric) ceramic case. Operates from -55°C to 125°C and is RoHS compliant.
Package0805
Capacitance900pF
Voltage Rating14V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera VC080514C300DP technical specifications.
General
| Approvals | UL |
| Capacitance | 900pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Clamping Current | 1A |
| Clamping Voltage | 32V |
| Clamping Voltage-Max | 32V |
| Depth | 1.25mm |
| Energy | 0.3J |
| Height | 1.02mm |
| Inductance | 1.5nH |
| Lead Free | Lead Free |
| Length | 2.01mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 120A |
| Max Surge Current | 120A |
| Max Varistor Voltage | 20.72V |
| Min Varistor Voltage | 16.28V |
| Max Voltage Rating (AC) | 10V |
| Max Voltage Rating (DC) | 14V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | VC |
| Size Code | 0805 |
| Termination | SMD/SMT |
| Varistor Voltage | 18.5V |
| Voltage Rating | 14V |
| Voltage Rating (AC) | 10V |
| DC Rated Voltage | 14V |
| Voltage Tolerance | 12% |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera VC080514C300DP Datasheet
Download the complete datasheet for Kyocera VC080514C300DP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

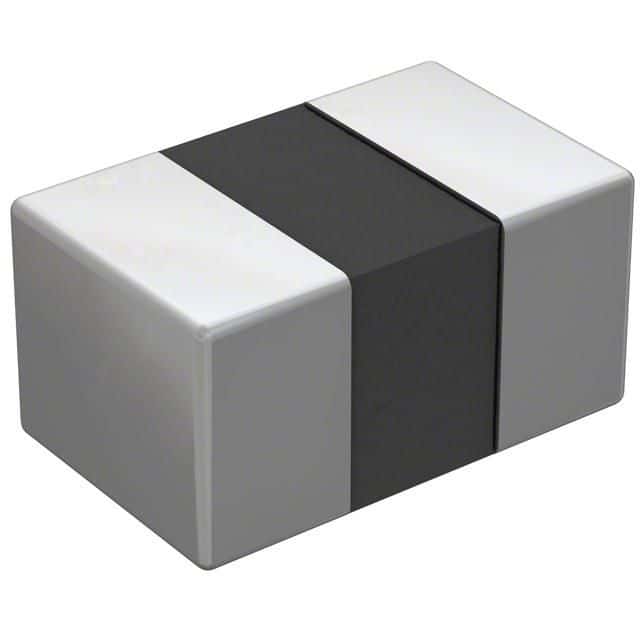

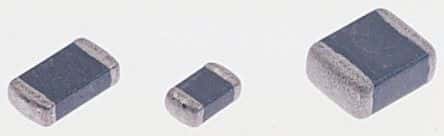

Product Images
