Surface mount SIDAC with a 30V DC voltage rating and 21V AC voltage rating. Features a 41V varistor voltage with a 10% tolerance, clamping at 67V with a maximum surge current of 120A. Housed in a 1206 (3216 metric) ceramic case, this component offers 0.4J energy handling and 1.7nH inductance. Operating temperature range is -55°C to 125°C, with UL approval and RoHS compliance.
Package1206
Capacitance400pF
Voltage Rating30V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera VC120630D650DP technical specifications.
General
Approvals
UL
Capacitance
400pF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Clamping Current
1A
Clamping Voltage
67V
Clamping Voltage-Max
67V
Depth
1.6mm
Energy
0.4J
Height
1.02mm
Inductance
1.7nH
Lead Free
Lead Free
Length
3.2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
120A
Max Surge Current
120A
Max Varistor Voltage
45.1V
Min Varistor Voltage
36.9V
Max Voltage Rating (AC)
21V
Max Voltage Rating (DC)
30V
Mount
Surface Mount
Number of Circuits
1
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
VC
Size Code
1206
Termination
SMD/SMT
Varistor Voltage
41V
Voltage Rating
30V
Voltage Rating (AC)
21V
DC Rated Voltage
30V
Voltage Tolerance
10%
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kyocera VC120630D650DP Datasheet
Download the complete datasheet for Kyocera VC120630D650DP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

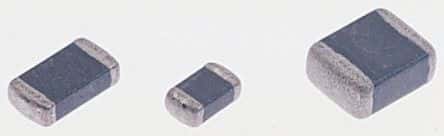

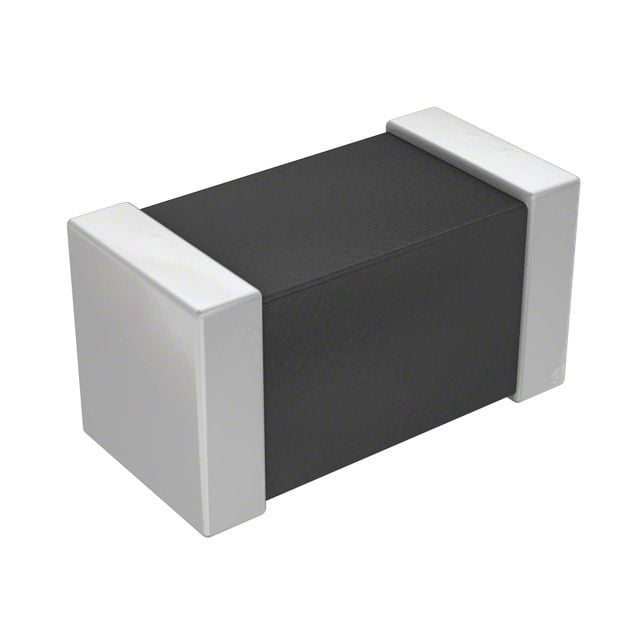

Product Images
