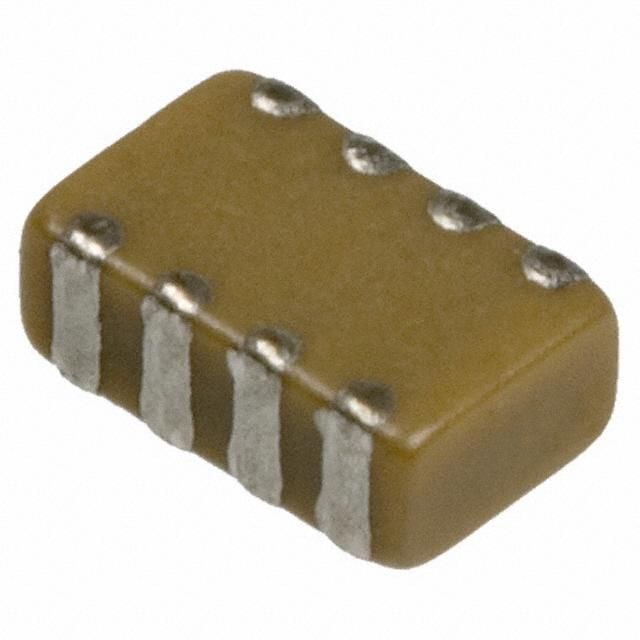

Surface mount capacitor array featuring 4 isolated ceramic elements with X5R dielectric. Offers a total capacitance of 100nF (0.1µF) at a 10V DC working voltage, with a ±10% tolerance. Housed in a 0508 (1220 metric) case code, this component measures 2.1mm in length, 1.3mm in width, and 0.94mm in height. Operating temperature range is -55°C to +85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kyocera W2A4ZD104KAT2A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Kyocera W2A4ZD104KAT2A technical specifications.
| Capacitance | 100nF |
| Case Code (Imperial) | 0508 |
| Case Code (Metric) | 1220 |
| Package/Case | 0508 |
| Circuit Type | Isolated |
| Construction | Flat |
| Dielectric | X5R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 10% |
| Height | 0.94mm |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Capacitors | 4 |
| Number of Elements | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | IPC |
| Terminal Pitch | 0.5mm |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 1.3mm |
| Working Voltage | 10V |
| RoHS | Compliant |
