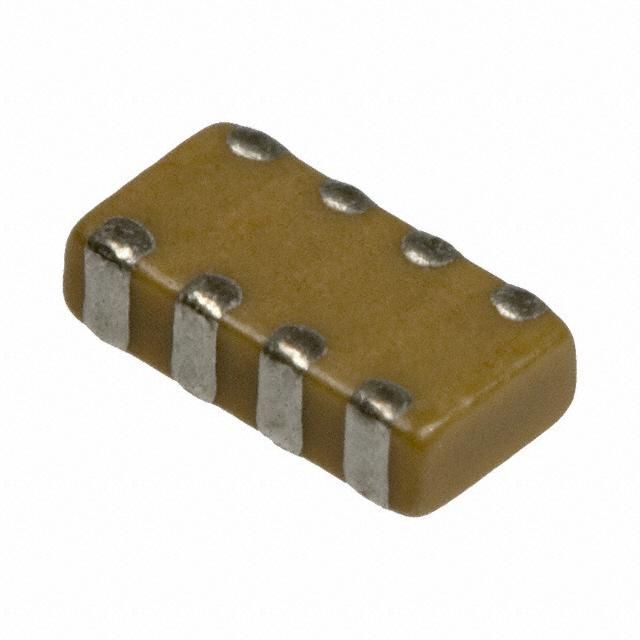

Surface mount capacitor array featuring 4 isolated elements, each with 47pF capacitance and a 100V DC rating. Utilizes C0G dielectric material for stable performance across a -55°C to 125°C operating temperature range. Housed in a 0612 (1.6mm x 3.2mm) case with a 0.76mm terminal pitch. Lead-free and RoHS compliant, supplied on tape and reel.
Package0612
Capacitance47pF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera W3A41A470KAT2A technical specifications.
General
Capacitance
47pF
Case Code (Imperial)
0612
Case Code (Metric)
1632
Package/Case
0612
Circuit Type
Isolated
Construction
Flat
Depth
3.2mm
Dielectric
C0G
Dielectric Material
Ceramic
Dissipation Factor
10%
Height
1.35mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Capacitors
4
Number of Elements
4
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
IPC
Terminal Pitch
0.76mm
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
100V
DC Rated Voltage
100V
Width
1.6mm
Working Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Kyocera W3A41A470KAT2A Datasheet
Download the complete datasheet for Kyocera W3A41A470KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
