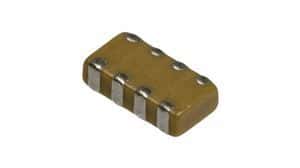

Surface mount capacitor array featuring 4 isolated ceramic elements, each with 470pF capacitance and a 50V voltage rating. This component utilizes a C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. The 0612 (1632 metric) case code provides a compact footprint with dimensions of 1.6mm width, 3.2mm depth, and 1.35mm height. Packaged in tape and reel for automated assembly, this RoHS compliant component offers a 10% capacitance tolerance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kyocera W3A45A471KAT2A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 470pF |
| Case Code (Imperial) | 0612 |
| Case Code (Metric) | 1632 |
| Package/Case | 0612 |
| Circuit Type | Isolated |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 1.35mm |
| Height - Seated (Max) | 0.053inch |
| Lead Free | Lead Free |
| Length | 0.063inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Capacitors | 4 |
| Number of Elements | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | IPC |
| Terminal Pitch | 0.76mm |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Width | 1.6mm |
| RoHS | Compliant |
