Surface mount capacitor array featuring 4 isolated 47pF ceramic capacitors with C0G dielectric, rated at 16V. This 0612 package array offers a 10% tolerance and operates across a wide temperature range of -55°C to 125°C. The component is constructed flat with a 0.76mm terminal pitch, suitable for automated assembly.
Package0612
Capacitance47pF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera W3A4YA470KAT2A technical specifications.
General
| Capacitance | 47pF |
| Package/Case | 0612 |
| Circuit Type | Isolated |
| Construction | Flat |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 1.35mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Capacitors | 4 |
| Number of Elements | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | IPC |
| Terminal Pitch | 0.76mm |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera W3A4YA470KAT2A Datasheet
Download the complete datasheet for Kyocera W3A4YA470KAT2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

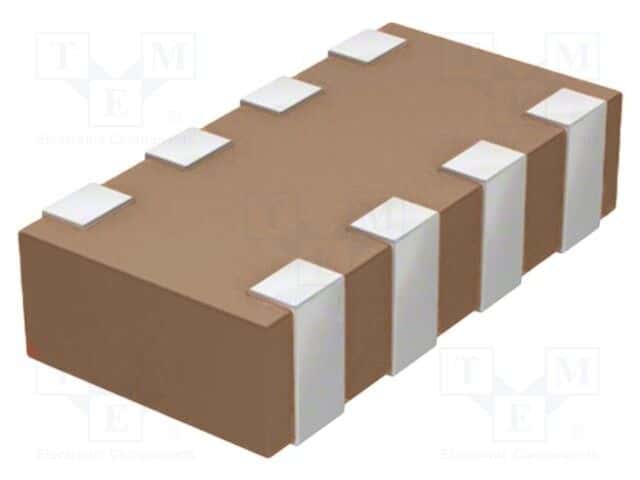

Product Images
