2.4GHz RF Transceiver Module with integrated chip antenna. Features UART interface, 300Kbps data rate, and -84dBm sensitivity. Operating voltage range of 3.3V to 7V, with transmit and receive current draw of 36mA. Surface mountable module with 6dBm output power, suitable for operation between -40°C and 85°C.
Frequency2.4GHz
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Laird BISMS02BI technical specifications.
General
| Package/Case | Module |
| Current - Receiving | 36mA |
| Current - Transmitting | 36mA |
| Data Rate | 300Kbps |
| Frequency | 2.4GHz |
| Interface | UART |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 7V |
| Min Supply Voltage | 3.3V |
| Mount | Surface Mount |
| Output Power (dBm) | 6dBm |
| Package Quantity | 300 |
| Packaging | Tray |
| Radiation Hardening | No |
| Sensitivity | -84dBm |
| Weight | 0.282192oz |
Compliance
| RoHS | Compliant |
Datasheet
Laird BISMS02BI Datasheet
Download the complete datasheet for Laird BISMS02BI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

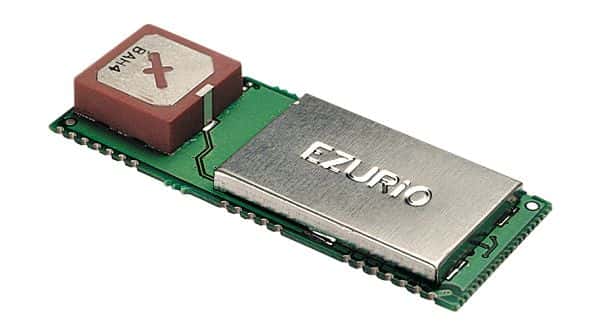

Product Images
