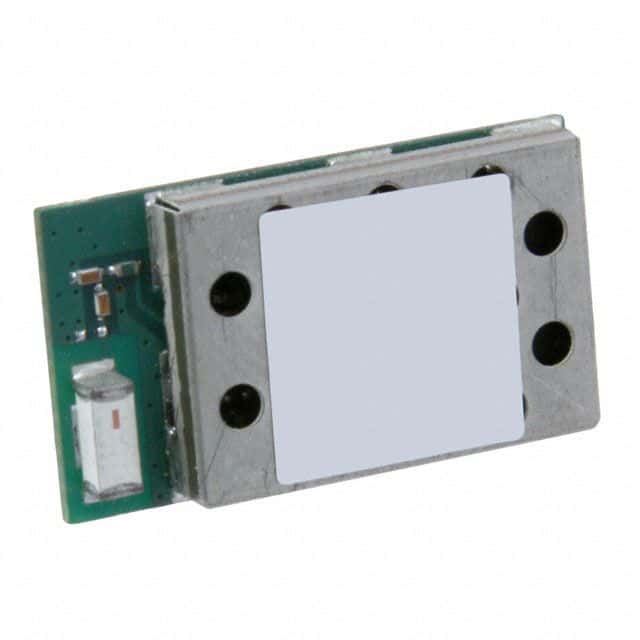

The Laird BTM511 is a 2.4GHz UART module with a data rate of 3Mbps and a current of 70mA. It operates within a supply voltage range of 3V to 3.6V and has a memory size of 16MB. The module is designed for surface mount and has a maximum operating temperature of 70°C. It is also RoHS compliant and has a sensitivity of -86dBm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird BTM511 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Laird BTM511 technical specifications.
| Package/Case | Module |
| Current - Receiving | 70mA |
| Current - Transmitting | 70mA |
| Data Rate | 3Mbps |
| Frequency | 2.4GHz |
| Interface | UART |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16MB |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Output Power (dBm) | 4dBm |
| Package Quantity | 200 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensitivity | -86dBm |
| RoHS | Compliant |
