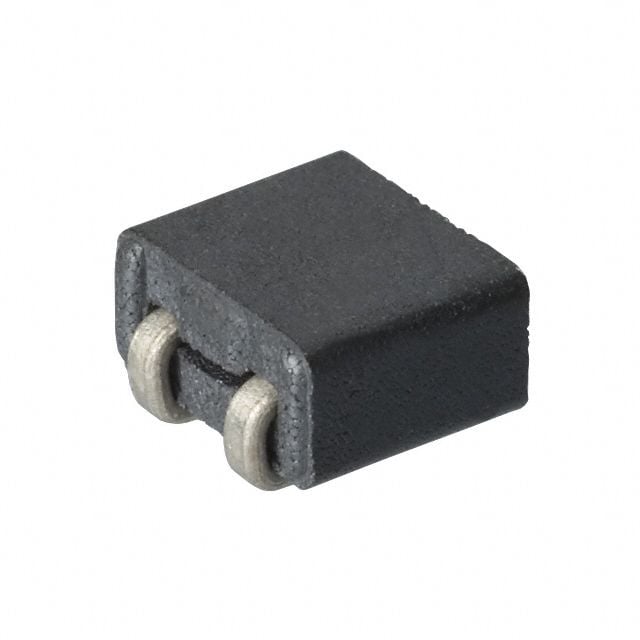

Surface mount data line filter featuring 2 functions and a 15A current rating. This component offers 33 Ohms impedance at 100MHz, with a DC rated voltage of 280V. Designed for surface mounting with SMD/SMT termination, it operates within a temperature range of -40°C to 125°C. The filter is packaged in a 2021 case size (2322 Imperial, 5956 Metric) and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird CM2021Y330R-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 2322 |
| Case Code (Metric) | 5956 |
| Package/Case | 2021 |
| Current Rating | 15A |
| Depth | 5.7mm |
| Height | 3.8mm |
| Impedance | 33R |
| Lead Free | Lead Free |
| Length | 5.88mm |
| Max Current Rating | 15A |
| Max DC Current | 15A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 15A |
| RoHS Compliant | Yes |
| Series | CM |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| DC Rated Voltage | 280V |
| Weight | 0.0128oz |
| Width | 5.6mm |
| RoHS | Compliant |
