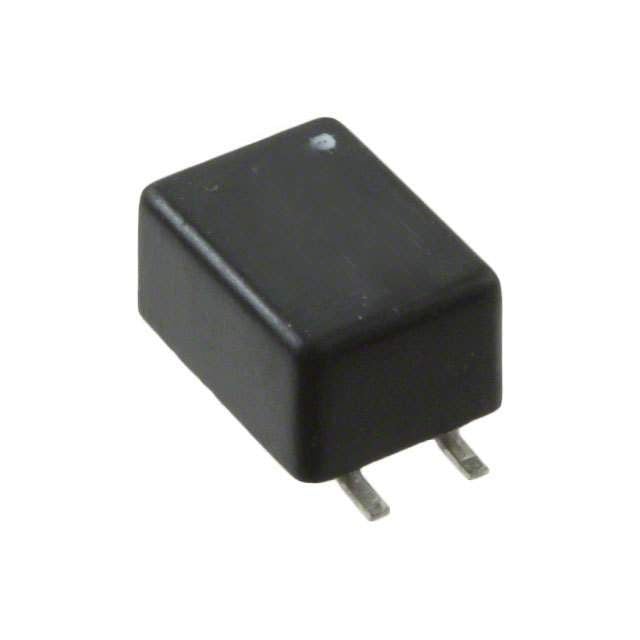

Dual common mode choke for power and signal lines, featuring 3.5kΩ impedance at 100MHz and an 800mA current rating. This surface mount component offers a low 0.3Ω DC resistance and operates across a wide temperature range of -40°C to 125°C. Encased in a 2824 package, it supports 2 lines and has a DC rated voltage of 80V. The component is lead-free and RoHS compliant, supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird CM2824E352R-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 2824 |
| Current Rating | 800mA |
| Depth | 5.5mm |
| Height | 4.9mm |
| Impedance | 3.5kR |
| Lead Free | Lead Free |
| Length | 7.5mm |
| Max Current Rating | 800mA |
| Max DC Current | 800mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CM |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| DC Rated Voltage | 80V |
| Weight | 0.00992oz |
| Width | 5.5mm |
| RoHS | Compliant |
