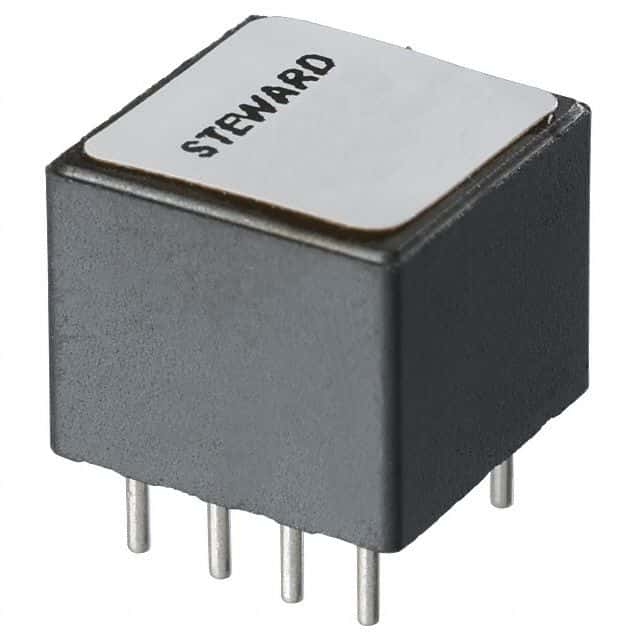

Quad common mode choke designed for power and signal line filtering. Features 130 Ohm impedance at 100MHz, with a 10A current rating and 10mOhm DC resistance. This through-hole component operates from -40°C to 125°C and is RoHS compliant. Packaged in bulk for high-volume applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird CM4545Z131B-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 4545 |
| Current Rating | 10A |
| Frequency | 100MHz |
| Impedance | 130R |
| Lead Free | Lead Free |
| Max Current Rating | 10A |
| Max DC Current | 10A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Lines | 4 |
| Package Quantity | 182 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CM |
| Termination | Pin |
| Test Frequency | 100MHz |
| Weight | 0.18064oz |
| RoHS | Compliant |
