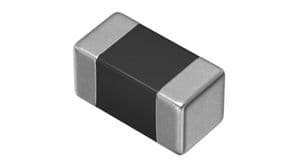

Surface mount ferrite bead chip designed for high current applications. Features 100 Ohm impedance at 100MHz, with a maximum DC current rating of 8A and a low DC resistance of 0.007 Ohm. Encased in a 1812 (4532 metric) package, this lead-free component operates within a temperature range of -40°C to 125°C. Supplied on tape and reel for automated assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird HI1812V101R-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current Rating | 8A |
| Depth | 3.2mm |
| Frequency | 100MHz |
| Height | 1.4mm |
| Impedance | 100R |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Material | Ferrite |
| Max Current Rating | 8A |
| Max DC Current | 8A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HI |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Weight | 0.00192oz |
| Width | 3.2mm |
| RoHS | Compliant |
