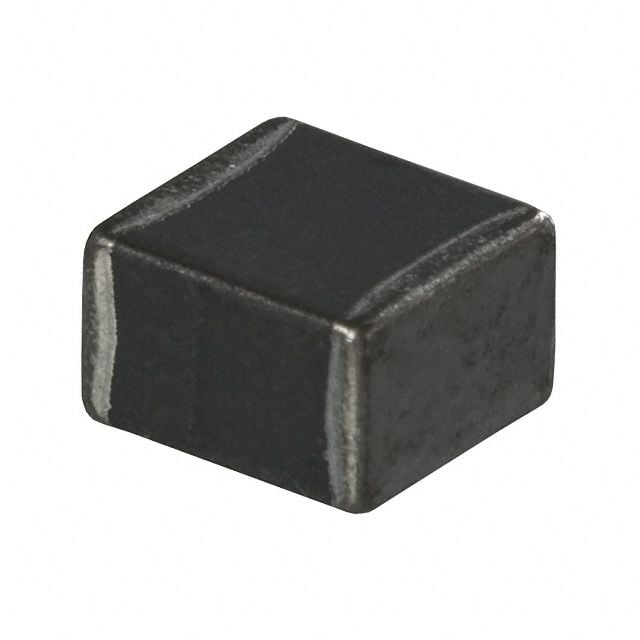

Surface mount ferrite bead with 170 Ohm impedance at 100MHz, rated for 4A maximum current. Features a 2220 case size (5.08mm x 5.6mm x 1.78mm) and a low DC resistance of 0.03 Ohms. Operating temperature range from -40°C to 125°C. Lead-free and RoHS compliant, supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird HI2220P171R-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5650 |
| Package/Case | 2220 |
| Depth | 5.08mm |
| Frequency | 100MHz |
| Height | 0.07inch |
| Impedance | 170R |
| Lead Free | Lead Free |
| Length | 0.22inch |
| Max Current Rating | 4A |
| Max DC Current | 4A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HI |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Weight | 0.00688oz |
| Width | 0.2inch |
| RoHS | Compliant |
