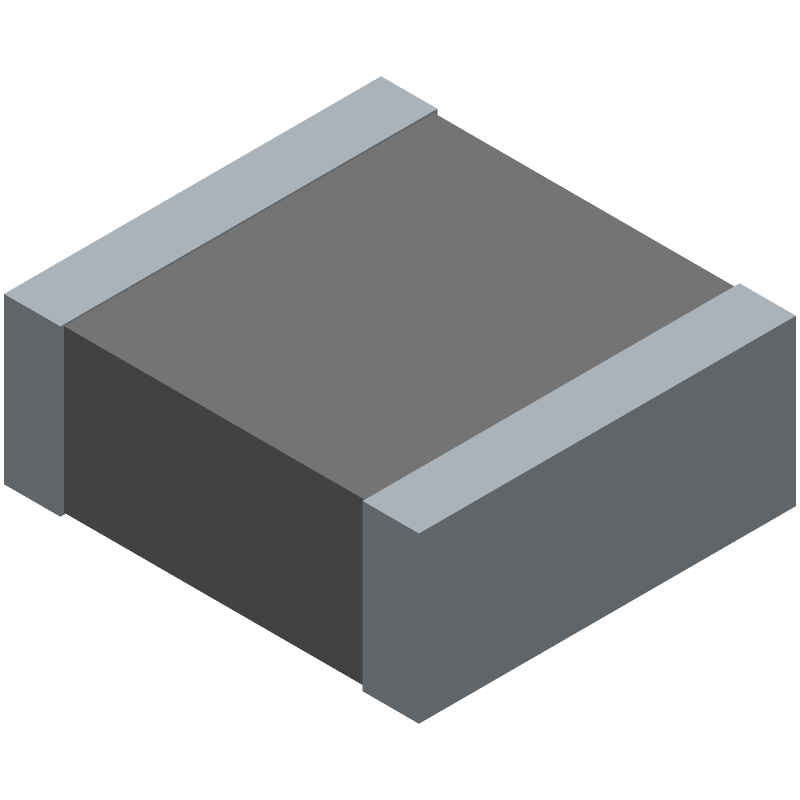

High current ferrite bead chip, 4A rated, featuring 550 Ohm impedance at 100MHz. This surface mount component offers a low DC resistance of 0.035 Ohms and operates within a temperature range of -40°C to 125°C. The 2220 case size (5.7mm x 5mm x 1.97mm) is supplied on tape and reel, with 2000 units per package. It is RoHS compliant and constructed from ferrite material.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird HI2220P551R-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5650 |
| Package/Case | 2220 |
| Current Rating | 4A |
| Depth | 5.08mm |
| Frequency | 100MHz |
| Height | 1.97mm |
| Impedance | 550R |
| Lead Free | Lead Free |
| Length | 5.7mm |
| Material | Ferrite |
| Max Current Rating | 4A |
| Max DC Current | 4A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HI |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Weight | 0.0288oz |
| Width | 5mm |
| RoHS | Compliant |
