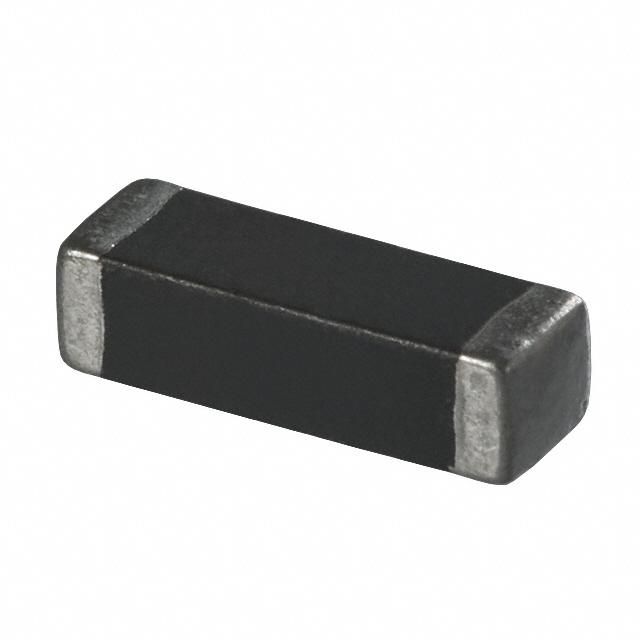

High-current ferrite bead chip for surface mount applications. Features 100 Ohm impedance at 100MHz, with a maximum current rating of 10A and a DC resistance of 0.004 Ohms. Constructed from ferrite material in a 3312 case code (8.5mm x 3.1mm x 3.05mm), this component offers a 10A max DC current capability. Operating temperature range is -40°C to 125°C. Packaged on tape and reel, this RoHS compliant component is designed for single-line noise suppression.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird HI3312X101R-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 3312 |
| Case Code (Metric) | 8531 |
| Package/Case | 3312 |
| Current Rating | 10A |
| Depth | 3.05mm |
| Frequency | 100MHz |
| Height | 2.28mm |
| Impedance | 100R |
| Lead Free | Lead Free |
| Length | 8.5mm |
| Material | Ferrite |
| Max Current Rating | 10A |
| Max DC Current | 10A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HI |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Weight | 0.0112oz |
| Width | 3.1mm |
| RoHS | Compliant |
