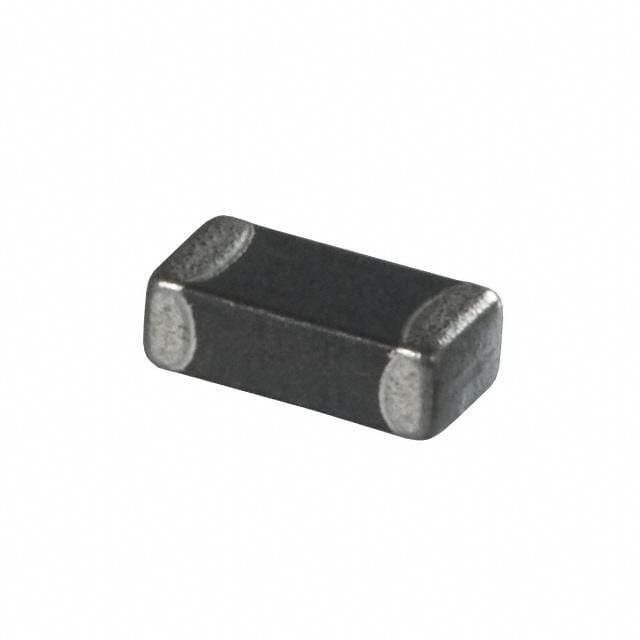

Surface mount data line EMI/RFI filter featuring 1.5kΩ impedance at 100MHz. This ferrite chip component offers a maximum DC current rating of 500mA and operates within a temperature range of -40°C to 125°C. Packaged in a 1206 (3216 metric) case, it measures 3.2mm in length, 1.6mm in width, and 1.8mm in depth, with a height of 1.1mm. RoHS compliant and lead-free, this filter is supplied on tape and reel.
Frequency100MHz
Package1206
MountingSurface Mount
Quick Jump:
Technical Specifications
Laird HZ1206E152R-10 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.8mm |
| Frequency | 100MHz |
| Height | 1.1mm |
| Impedance | 1.5kR |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 500mA |
| Max DC Current | 500mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HZ |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Weight | 0.00952oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Laird HZ1206E152R-10 Datasheet
Download the complete datasheet for Laird HZ1206E152R-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
