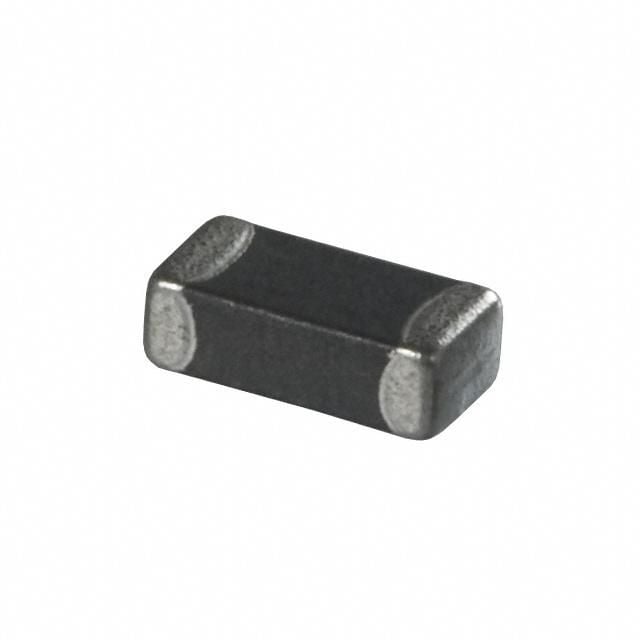

Ferrite bead chip for power line filtering, featuring 120 Ohm impedance at 100MHz and a maximum DC current rating of 800mA. This surface mount component utilizes a ferrite core and is housed in a 1206 (3216 metric) case. Operating within a temperature range of -40°C to 125°C, it offers a low DC resistance of 0.15 Ohms and is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird LI1206H121R-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Core Material | Ferrite |
| Current Rating | 800mA |
| Depth | 1.8mm |
| Frequency | 100MHz |
| Height | 1.6mm |
| Impedance | 120R |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ferrite |
| Max Current Rating | 800mA |
| Max DC Current | 800mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LI |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Weight | 0.0016oz |
| Width | 1.6mm |
| RoHS | Compliant |
