Surface mount ferrite bead with 600 Ohm impedance at 100MHz. Features a 1.5A maximum current rating and 80mOhm DC resistance. Housed in a 1206 (3216 metric) case with dimensions of 3.2mm length, 2.5mm width, and 1.8mm depth. Operating temperature range is -40°C to 125°C. Packaged on tape and reel, this RoHS compliant component is designed for single line applications.
Frequency100MHz
Package1206
MountingSurface Mount
Quick Jump:
Technical Specifications
Laird MI1206K601R-10 technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Depth
1.8mm
Frequency
100MHz
Height
1.4mm
Impedance
600R
Lead Free
Lead Free
Length
3.2mm
Max Current Rating
1.5A
Max DC Current
1.5A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Lines
1
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RMS Current (Irms)
1.5A
RoHS Compliant
Yes
Series
MI
Series Resistance
80mR
Termination
SMD/SMT
Test Frequency
100MHz
Weight
0.00952oz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Laird MI1206K601R-10 Datasheet
Download the complete datasheet for Laird MI1206K601R-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

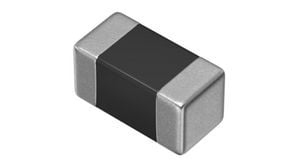

Product Images
