Surface mount ferrite bead with 390 Ohm impedance at 100MHz, rated for 2A maximum DC current. Features a 1206 case size (3.2mm x 2.5mm x 1.4mm) and a low DC resistance of 0.05 Ohms. Operating temperature range is -40°C to 125°C. Lead-free and RoHS compliant, supplied on tape and reel.
Package1206
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Laird MI1206L391R-10 technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
2A
Depth
1.8mm
Height
1.4mm
Impedance
390R
Lead Free
Lead Free
Length
3.2mm
Material
Ferrite
Max Current Rating
2A
Max DC Current
2A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Lines
1
Package Quantity
15000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MI
Termination
SMD/SMT
Test Frequency
100MHz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Laird MI1206L391R-10 Datasheet
Download the complete datasheet for Laird MI1206L391R-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

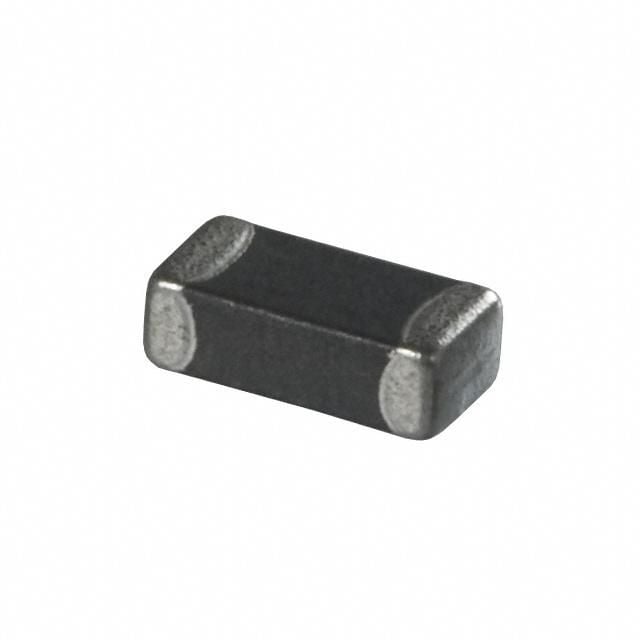

Product Images
