Field Programmable Gate Array (FPGA) with 1280 logic elements and 1280 macrocells, offering 95 I/Os within a 121UCBGA package. Features a 64Kb RAM size and operates at a maximum frequency of 533MHz. This component supports an operating supply voltage of 1.2V, with a range from 1.14V to 1.26V, and functions across an industrial temperature range of -40°C to 85°C. The BGA package measures 5mm in length and width, with a height of 0.9mm, and is lead-free and RoHS compliant.
Frequency533MHz
PackageBGA
Quick Jump:
Technical Specifications
Lattice Semiconductor ICE40LP1K-CM121 technical specifications.
General
Package/Case
BGA
Density
64Kb
Height
0.9mm
Lead Free
Lead Free
Length
5mm
Max Frequency
533MHz
Max Operating Temperature
85°C
Memory Size
64Kb
Min Operating Temperature
-40°C
Max Supply Voltage
1.26V
Min Supply Voltage
1.14V
Number of Gates
1280
Number of I/Os
95
Number of Logic Blocks (LABs)
16
Number of Logic Elements/Cells
1280
Number of Macrocells
1280
Number of Registers
1280
Operating Supply Voltage
1.2V
Package Quantity
490
Packaging
Tray
Radiation Hardening
No
RAM Size
65536b
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LP
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor ICE40LP1K-CM121 Datasheet
Download the complete datasheet for Lattice Semiconductor ICE40LP1K-CM121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

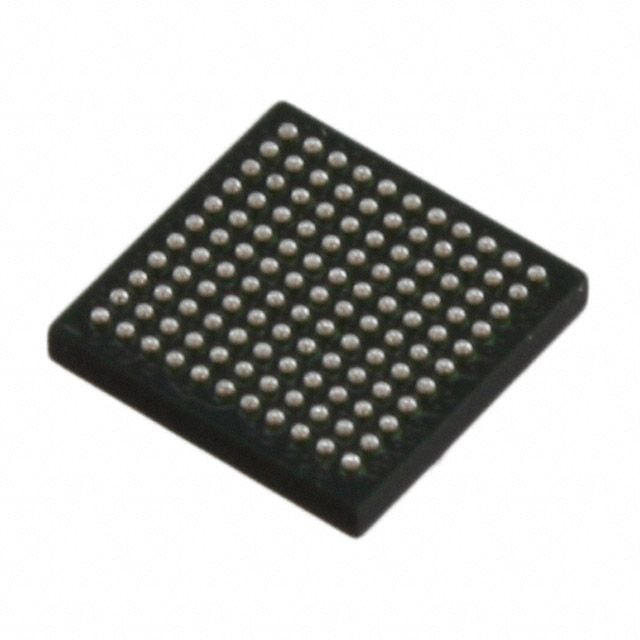

Product Images
