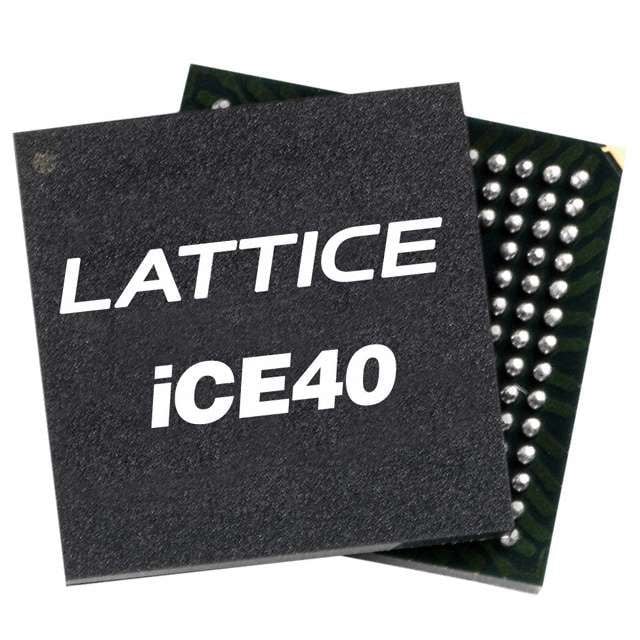

Field Programmable Gate Array (FPGA) with 1280 logic elements/cells and 1280 macrocells. Features 25 I/Os, 160 Logic Array Blocks (LABs), and 64Kb of RAM. Operates at a maximum frequency of 533MHz with an operating supply voltage of 1.2V, ranging from 1.14V to 1.26V. Housed in a 2.5mm x 2.5mm x 0.9mm VFBGA package, this RoHS compliant component is suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lattice Semiconductor ICE40LP1K-CM36 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lattice Semiconductor ICE40LP1K-CM36 technical specifications.
| Package/Case | VFBGA |
| Density | 64Kb |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max Frequency | 533MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.26V |
| Memory Size | 64Kb |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.14V |
| Number of Gates | 1280 |
| Number of I/Os | 25 |
| Number of Logic Blocks (LABs) | 160 |
| Number of Logic Elements/Cells | 1280 |
| Number of Macrocells | 1280 |
| Number of Registers | 1280 |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 65536b |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LP |
| Width | 2.5mm |
| RoHS | Compliant |
Download the complete datasheet for Lattice Semiconductor ICE40LP1K-CM36 to view detailed technical specifications.
