LATTICE SEMICONDUCTOR

ICE40LP1K-CM49

Datasheet

FPGA 1.2V 533MHz 35 I/O 1280 Gates VFBGA

Lattice Semiconductor

ICE40LP1K-CM49

Name: ICE40LP1K-CM49 Lattice Semiconductor
Brand: Lattice Semiconductor
SKU: ICE40LP1K-CM49

FPGA 1.2V 533MHz 35 I/O 1280 Gates VFBGA

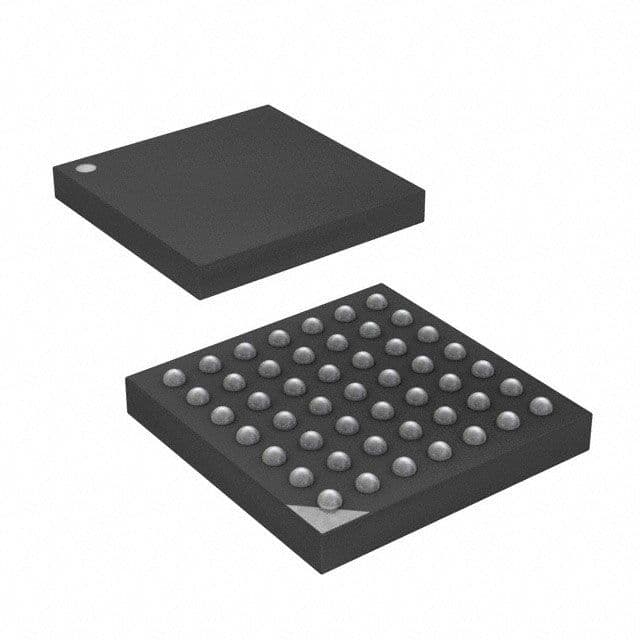

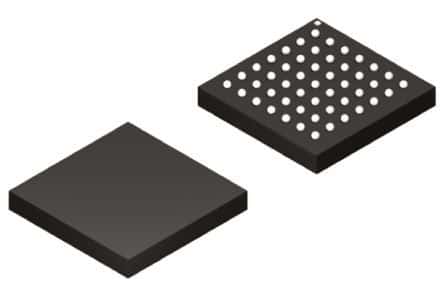

Field Programmable Gate Array (FPGA) with 1280 logic elements and 1280 registers, offering 35 I/Os and 160 logic blocks. Features 64Kb RAM, a maximum operating frequency of 533MHz, and a 1.2V operating supply voltage. Encased in a 3mm x 3mm x 0.9mm VFBGA package, this lead-free, RoHS-compliant component operates between -40°C and 85°C.

Frequency533MHz

PackageVFBGA

Quick Jump:

Technical Specifications

Lattice Semiconductor ICE40LP1K-CM49 technical specifications.

General

Package/Case	VFBGA
Density	64Kb
Height	0.9mm
Lead Free	Lead Free
Length	3mm
Max Frequency	533MHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	1.26V
Memory Size	64Kb
Min Supply Voltage	1.14V
Number of Gates	1280
Number of I/Os	35
Number of Logic Blocks (LABs)	160
Number of Logic Elements/Cells	1280
Number of Registers	1280
Operating Supply Voltage	1.2V
Package Quantity	490
Packaging	Tray
Radiation Hardening	No
RAM Size	65536b
RoHS Compliant	Yes
Series	iCE40™ LP
Width	3mm
