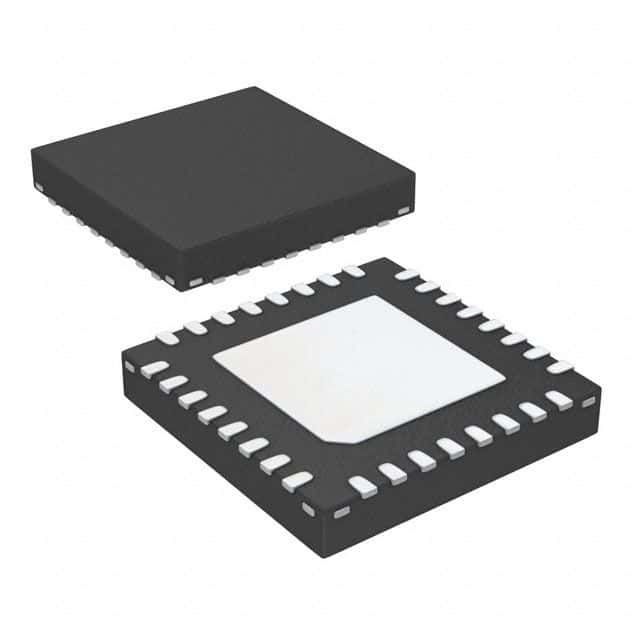

CMOS Field Programmable Gate Array (FPGA) with 384 logic elements and 48 logic blocks. Features 21 I/Os and operates from a 1.14V to 1.26V supply voltage, with a typical operating voltage of 1.2V. This lead-free, RoHS compliant component offers a wide operating temperature range of -40°C to 100°C. Packaged in a QFN format, it is supplied in trays.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lattice Semiconductor ICE40LP384-SG32 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lattice Semiconductor ICE40LP384-SG32 technical specifications.
| Package/Case | QFN |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.26V |
| Min Supply Voltage | 1.14V |
| Number of I/Os | 21 |
| Number of Logic Blocks (LABs) | 48 |
| Number of Logic Elements/Cells | 384 |
| Operating Supply Current | 21uA |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 490 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | iCE40™ LP |
| RoHS | Compliant |
Download the complete datasheet for Lattice Semiconductor ICE40LP384-SG32 to view detailed technical specifications.
