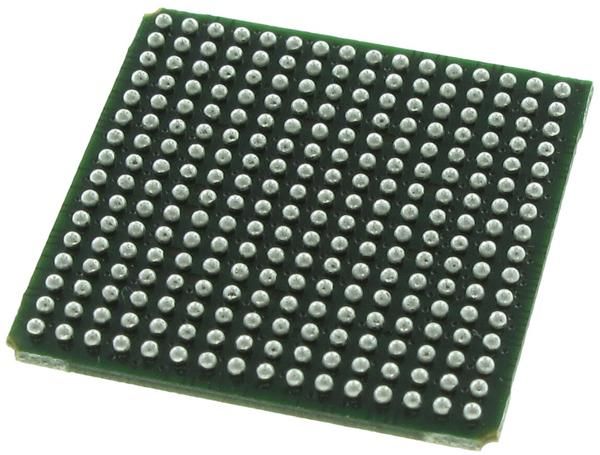

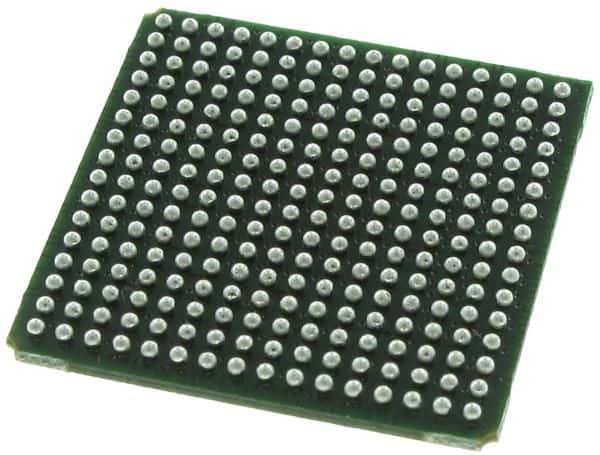

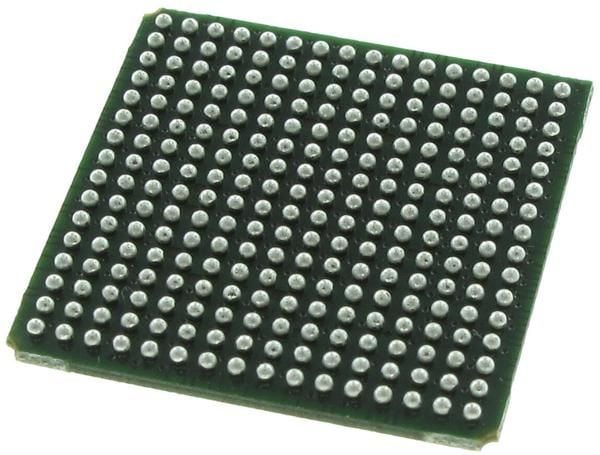

The iCE65L04F-TCB196C is a 3520-cell field-programmable gate array (FPGA) with 150 I/Os and a maximum operating frequency of 256MHz. It operates within a temperature range of 0°C to 70°C and consumes an operating supply current of 26uA at a supply voltage of 1.2V. The device is packaged in a tray and is compliant with RoHS regulations. It features 440 logic blocks and 80Kb of memory, with a RAM size of 81920 bits.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lattice Semiconductor iCE65L04F-TCB196C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lattice Semiconductor iCE65L04F-TCB196C technical specifications.
| Lead Free | Lead Free |
| Max Frequency | 256MHz |
| Max Operating Temperature | 70°C |
| Memory Size | 80Kb |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Gates | 3520 |
| Number of I/Os | 150 |
| Number of Logic Blocks (LABs) | 440 |
| Number of Logic Elements/Cells | 3520 |
| Operating Supply Current | 26uA |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 248 |
| Packaging | Tray |
| RAM Size | 81920b |
| RoHS Compliant | Yes |
| Series | iCE65™ L |
| RoHS | Compliant |
