3.3V 32 Macrocell Complex Programmable Logic Device (CPLD) featuring 1K gates and a maximum operating frequency of 300MHz. This surface mount device, housed in a 44-pin TQFP package, offers 28 programmable I/Os and a propagation delay of 4.5ns. Operating within a voltage range of 3V to 3.6V, it supports EEPROM memory and is RoHS compliant.
Frequency333MHz
PackageTQFP
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor ISPLSI2032VE-300LTN44 technical specifications.
General
| Package/Case | TQFP |
| Frequency | 333MHz |
| Max Frequency | 300MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 1000 |
| Number of I/Os | 32 |
| Number of Logic Blocks (LABs) | 8 |
| Number of Logic Elements/Cells | 8 |
| Number of Macrocells | 32 |
| Number of Programmable I/O | 28 |
| Operating Supply Current | 80mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Propagation Delay | 4.5ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ispLSI® 2000VE |
| Supply Current | 80mA |
| Turn-On Delay Time | 4.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor ISPLSI2032VE-300LTN44 Datasheet
Download the complete datasheet for Lattice Semiconductor ISPLSI2032VE-300LTN44 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

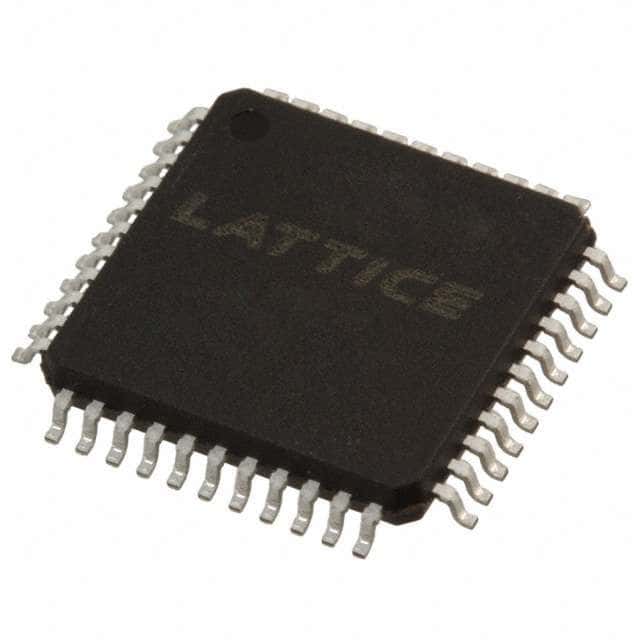

Product Images
