Lattice Semiconductor
ISPLSI5384VA-125LB208
EE PLD, 9.5ns, 384-Cell, CMOS, PBGA208, THERMALLY ENHANCED, FBGA-208
Frequency167MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor ISPLSI5384VA-125LB208 technical specifications.
General
| Package/Case | BGA |
| Frequency | 167MHz |
| Max Frequency | 125MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 18000 |
| Number of I/Os | 144 |
| Number of Logic Blocks (LABs) | 12 |
| Number of Logic Elements/Cells | 12 |
| Number of Macrocells | 384 |
| Number of Programmable I/O | 44 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Tray |
| Propagation Delay | 9.5ns |
| RoHS Compliant | No |
| Series | ispLSI® 5000VA |
Compliance
| RoHS | Not Compliant |
Datasheet
Lattice Semiconductor ISPLSI5384VA-125LB208 Datasheet
Download the complete datasheet for Lattice Semiconductor ISPLSI5384VA-125LB208 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

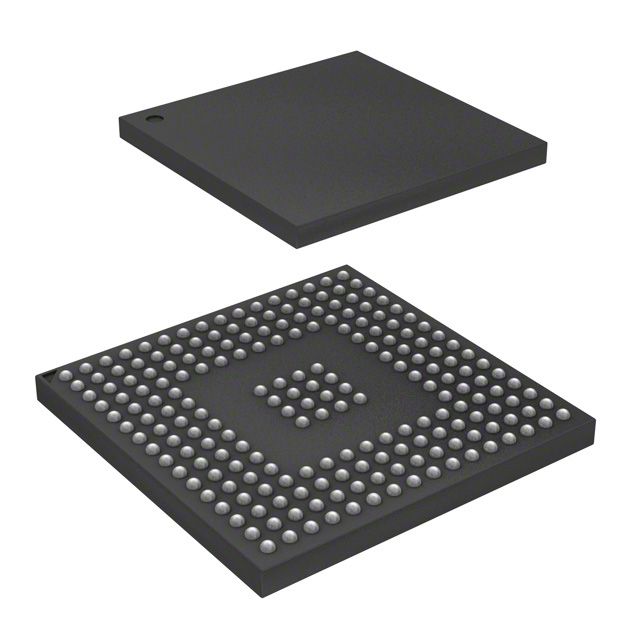

Product Images
