CMOS Programmable Logic Device (PLD) featuring 128 macrocells and 36 logic array blocks (LABs). Offers 96 programmable I/Os with a propagation delay of 5ns and a maximum operating frequency of 333MHz. Operates from a 3V to 3.6V supply voltage, with a typical operating supply voltage of 3.3V and a supply current of 12mA. Encased in a TQFP package for surface mounting, this device operates across a temperature range of -40°C to 105°C.
Frequency227.27MHz
PackageTQFP
Current12mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Lattice Semiconductor LC4128V-5T144I datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Lattice Semiconductor LC4128V-5T144I technical specifications.
General
| Package/Case | TQFP |
| Frequency | 227.27MHz |
| Lead Free | Lead Free |
| Max Frequency | 333MHz |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of I/Os | 96 |
| Number of Logic Blocks (LABs) | 36 |
| Number of Logic Elements/Cells | 8 |
| Number of Macrocells | 128 |
| Number of Programmable I/O | 96 |
| Operating Supply Current | 12mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 60 |
| Packaging | Tray |
| Propagation Delay | 5ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | ispMACH® 4000V |
| Supply Current | 12mA |
| Turn-On Delay Time | 5ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Lattice Semiconductor LC4128V-5T144I Datasheet
Download the complete datasheet for Lattice Semiconductor LC4128V-5T144I to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

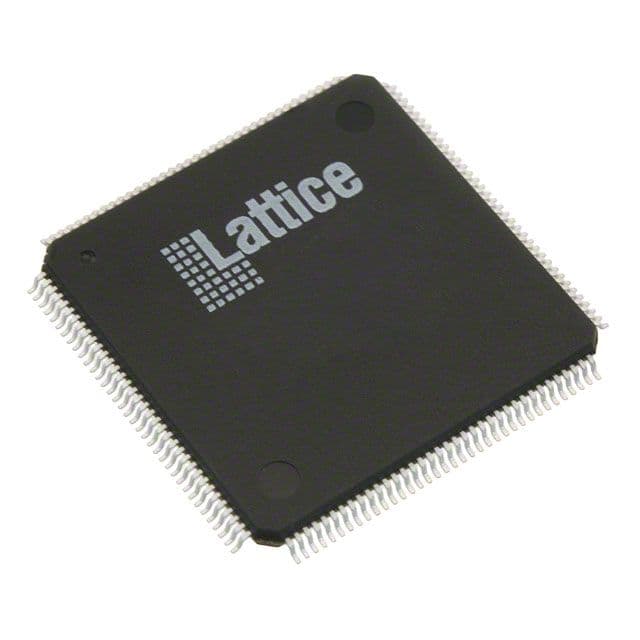

Product Images
