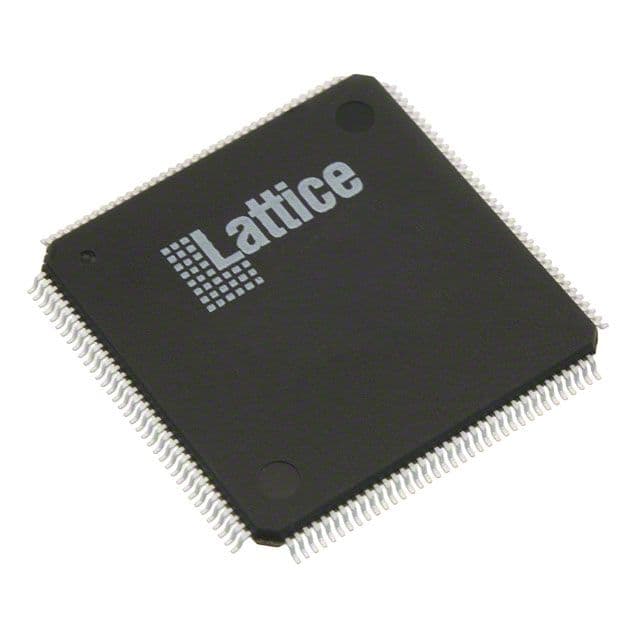

High-performance 128-macrocell EE PLD, featuring 5ns propagation delay and a maximum operating frequency of 333MHz. This CMOS device operates from a 3V to 3.6V supply, with a typical 3.3V operating voltage and 12mA supply current. It offers 96 programmable I/Os and is housed in a TQFP surface-mount package. Designed for a wide temperature range of -40°C to 105°C, this RoHS compliant component is ideal for general-purpose applications.
Frequency227.27MHz
PackageTQFP
Current12mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LC4128V-5TN144I technical specifications.
General
Package/Case
TQFP
Frequency
227.27MHz
Lead Free
Lead Free
Max Frequency
333MHz
Max Operating Temperature
105°C
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
96
Number of Logic Blocks (LABs)
8
Number of Logic Elements/Cells
8
Number of Macrocells
128
Number of Programmable I/O
96
Operating Supply Current
12mA
Operating Supply Voltage
3.3V
Package Quantity
60
Packaging
Tray
Propagation Delay
5ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
ispMACH® 4000V
Supply Current
12mA
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LC4128V-5TN144I Datasheet
Download the complete datasheet for Lattice Semiconductor LC4128V-5TN144I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
