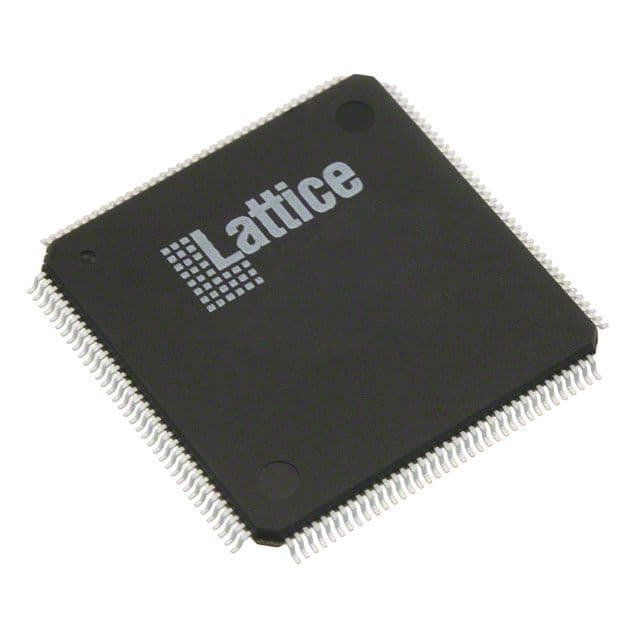

CMOS Flash Programmable Logic Device (PLD) with 1200 logic elements and 150 logic blocks. Features 9.2Kb of SRAM, 15.6Kb memory size, and a maximum operating frequency of 420MHz. Offers 113 I/Os, a 5.1ns propagation delay, and operates from 1.71V to 3.465V with a typical 3.3V supply. Packaged in a 144-pin TQFP (20 x 20 mm) for surface mounting. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lattice Semiconductor LCMXO1200C-3TN144C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lattice Semiconductor LCMXO1200C-3TN144C technical specifications.
| Package/Case | TQFP |
| Density | 9.2Kb |
| Frequency | 420MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 15.6Kb |
| Memory Type | SRAM, |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of I/Os | 113 |
| Number of Logic Blocks (LABs) | 150 |
| Number of Logic Elements/Cells | 1200 |
| Operating Supply Current | 21mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Propagation Delay | 5.1ns |
| Radiation Hardening | No |
| RAM Size | 9420.8b |
| RoHS Compliant | Yes |
| Series | MachXO |
| Turn-On Delay Time | 5.1ns |
| Weight | 0.04653oz |
| RoHS | Compliant |
