LATTICE SEMICONDUCTOR

LCMXO2-1200ZE-1TG100I

Datasheet

FPGA, 104MHz, 1280 Cells, 138Kb FLASH, TQFP-100

Lattice Semiconductor

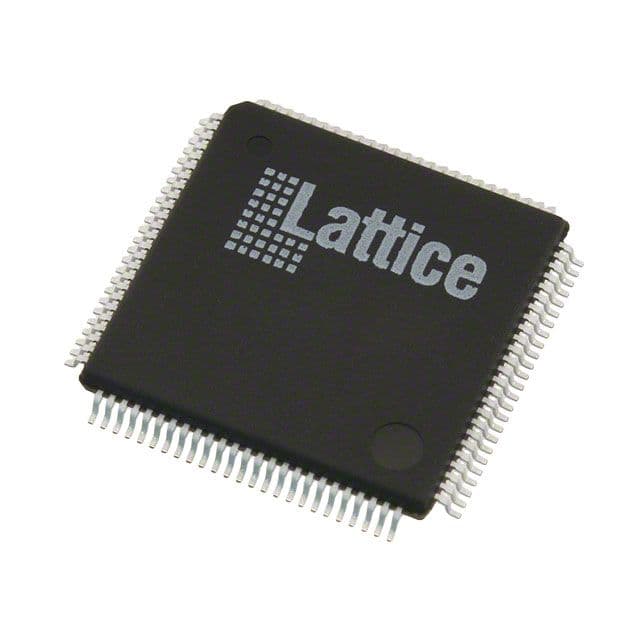

LCMXO2-1200ZE-1TG100I

Name: LCMXO2-1200ZE-1TG100I Lattice Semiconductor
Brand: Lattice Semiconductor
SKU: LCMXO2-1200ZE-1TG100I

FPGA, 104MHz, 1280 Cells, 138Kb FLASH, TQFP-100

Field Programmable Gate Array (FPGA) with 1280 logic elements/cells and 640 macrocells. Features 138Kb of FLASH memory, 65536 bits of RAM, and 160 logic blocks (LABs). Operates at a frequency of 104MHz with a propagation delay of 10.21ns. Surface mountable in a TQFP package, supporting a supply voltage range of 1.14V to 1.26V. Designed for operation between -40°C and 100°C, with 80 I/Os. This component is RoHS compliant.

Frequency104MHz

PackageTQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Lattice Semiconductor LCMXO2-1200ZE-1TG100I technical specifications.

General

Package/Case	TQFP
Frequency	104MHz
Lead Free	Lead Free
Max Frequency	104MHz
Max Operating Temperature	100°C
Memory Size	138Kb
Memory Type	FLASH,
Min Operating Temperature	-40°C
Max Supply Voltage	1.26V
Min Supply Voltage	1.14V
Mount	Surface Mount
Number of I/Os	80
Number of Logic Blocks (LABs)	160
Number of Logic Elements/Cells	1280
Number of Macrocells	640
Operating Supply Current	56uA
Operating Supply Voltage	1.2V
Package Quantity	90
Packaging	Tray
Propagation Delay	10.21ns
Radiation Hardening	No
RAM Size	65536b
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	MachXO2
