Lattice Semiconductor
LCMXO2-2000HE-4MG132C
Field Programmable Gate Array, 2112-Cell, CMOS, PBGA132, CSBGA-132
Frequency269MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2-2000HE-4MG132C technical specifications.
General
| Lead Free | Lead Free |
| Max Frequency | 269MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.26V |
| Memory Size | 170Kb |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.14V |
| Mount | Surface Mount |
| Number of I/Os | 105 |
| Number of Logic Blocks (LABs) | 264 |
| Number of Logic Elements/Cells | 2112 |
| Number of Macrocells | 1056 |
| Operating Supply Current | 4.8mA |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 360 |
| Packaging | Tray |
| RAM Size | 75776b |
| RoHS Compliant | Yes |
| Series | MachXO2 |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor LCMXO2-2000HE-4MG132C Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2-2000HE-4MG132C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

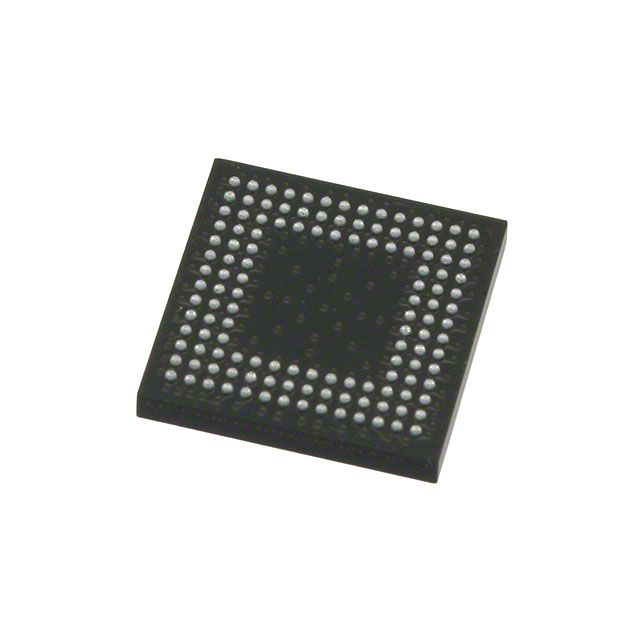

Product Images
