Complex Programmable Logic Device (CPLD) with 256 macrocells and 32 logic blocks, offering 56 I/Os. Features 2Kb FLASH memory and operates at a maximum frequency of 269MHz with a propagation delay of 7.24ns. Supports 2.5V/3.3V operation, with a supply voltage range of 2.375V to 3.465V. Packaged in a 100-pin TQFP for surface mounting, this RoHS compliant component is delivered in a tray.
Frequency269MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2-256HC-4TG100C technical specifications.
General
Package/Case
TQFP
Frequency
269MHz
Lead Free
Lead Free
Max Frequency
269MHz
Max Operating Temperature
85°C
Memory Size
2Kb
Memory Type
FLASH,
Min Operating Temperature
0°C
Max Supply Voltage
3.465V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Gates
256
Number of I/Os
56
Number of Logic Blocks (LABs)
32
Number of Logic Elements/Cells
256
Number of Macrocells
256
Operating Supply Current
1.15mA
Package Quantity
90
Packaging
Tray
Propagation Delay
7.24ns
Radiation Hardening
No
RAM Size
0b
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MachXO2
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LCMXO2-256HC-4TG100C Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2-256HC-4TG100C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

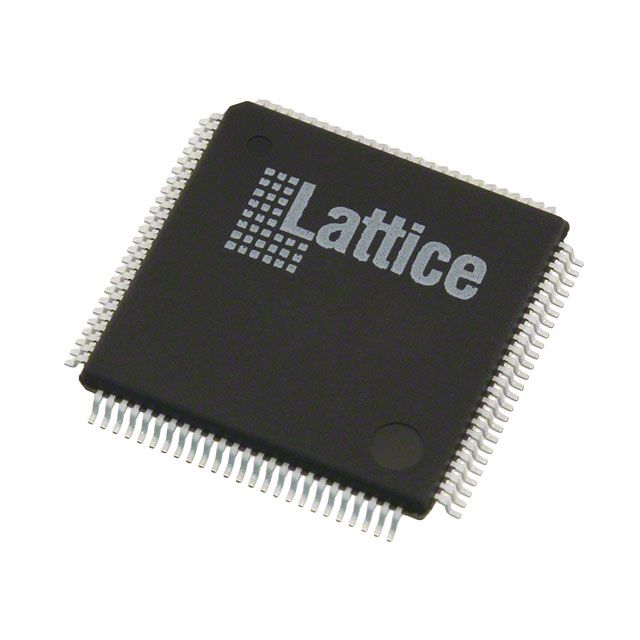

Product Images
