Lattice Semiconductor
LCMXO2-4000HC-4BG332I
Field Programmable Gate Array, 4320-Cell, CMOS, PBGA332, CABGA-332
Frequency269MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2-4000HC-4BG332I technical specifications.
General
Package/Case
FBGA
Frequency
269MHz
Lead Free
Lead Free
Max Frequency
133MHz
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Memory Size
222Kb
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of I/Os
274
Number of Logic Blocks (LABs)
540
Number of Logic Elements/Cells
4320
Number of Macrocells
4320
Operating Supply Current
128uA
Operating Supply Voltage
2.5V
Package Quantity
90
Packaging
Tray
Propagation Delay
7.24ns
RAM Size
94208b
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MachXO2
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LCMXO2-4000HC-4BG332I Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2-4000HC-4BG332I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

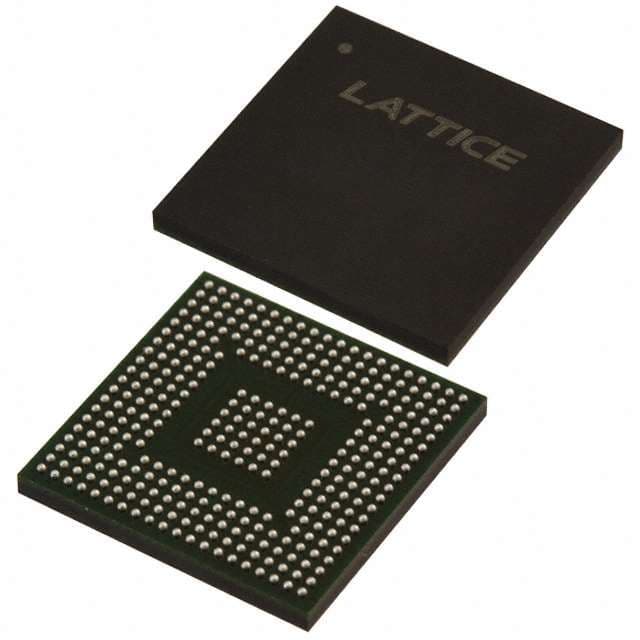

Product Images
