Field Programmable Gate Array (FPGA) with 6864 logic elements/cells and 6864 macrocells. Features 278 I/Os, 858 Logic Blocks (LABs), and 550Kb of FLASH memory. Operates at a maximum frequency of 269MHz with a propagation delay of 7.24ns. Supports a supply voltage range of 2.375V to 3.465V and an operating temperature range of -40°C to 100°C. This surface mount component is RoHS compliant.
Frequency269MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2-7000HC-4BG332I technical specifications.
General
| Package/Case | FBGA |
| Frequency | 269MHz |
| Lead Free | Lead Free |
| Max Frequency | 269MHz |
| Max Operating Temperature | 100°C |
| Max Supply Voltage | 3.465V |
| Memory Size | 550Kb |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Gates | 6864 |
| Number of I/Os | 278 |
| Number of Logic Blocks (LABs) | 858 |
| Number of Logic Elements/Cells | 6864 |
| Number of Macrocells | 6864 |
| Operating Supply Current | 189uA |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 90 |
| Packaging | Tray |
| Propagation Delay | 7.24ns |
| Radiation Hardening | No |
| RAM Size | 245760b |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MachXO2 |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor LCMXO2-7000HC-4BG332I Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2-7000HC-4BG332I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

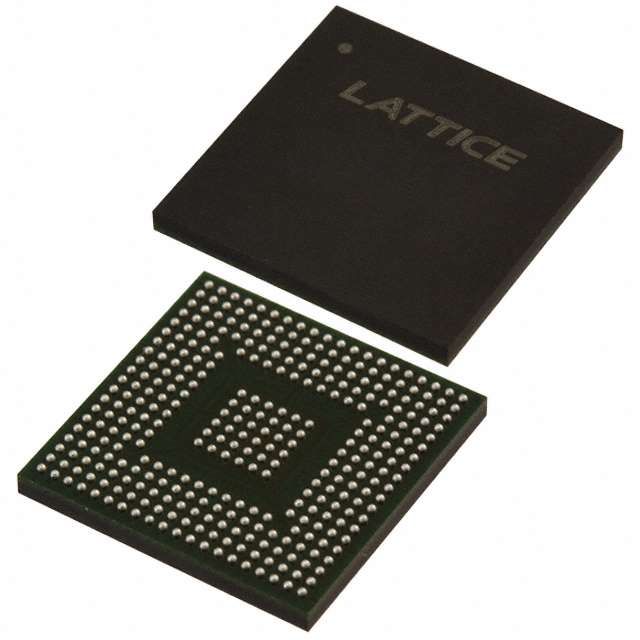

Product Images
