The Lattice Semiconductor LCMXO2-7000HC-6BG256I is a Field Programmable Gate Array (FPGA) with 550Kb of FLASH memory and a maximum operating frequency of 388MHz. It features 206 I/Os and is packaged in a CABGA-256 package. The device operates over a temperature range of -40°C to 100°C and is RoHS compliant. The LCMXO2-7000HC-6BG256I is suitable for a variety of applications, including those requiring high-speed digital logic and memory.
Frequency388MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2-7000HC-6BG256I technical specifications.
General
| Package/Case | BGA |
| Density | 550Kb |
| Lead Free | Lead Free |
| Max Frequency | 388MHz |
| Max Operating Temperature | 100°C |
| Memory Size | 550Kb |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Gates | 6864 |
| Number of I/Os | 206 |
| Number of Logic Blocks (LABs) | 858 |
| Number of Logic Elements/Cells | 6864 |
| Operating Supply Current | 189uA |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 119 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 245760b |
| RoHS Compliant | Yes |
| Series | MachXO2 |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor LCMXO2-7000HC-6BG256I Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2-7000HC-6BG256I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

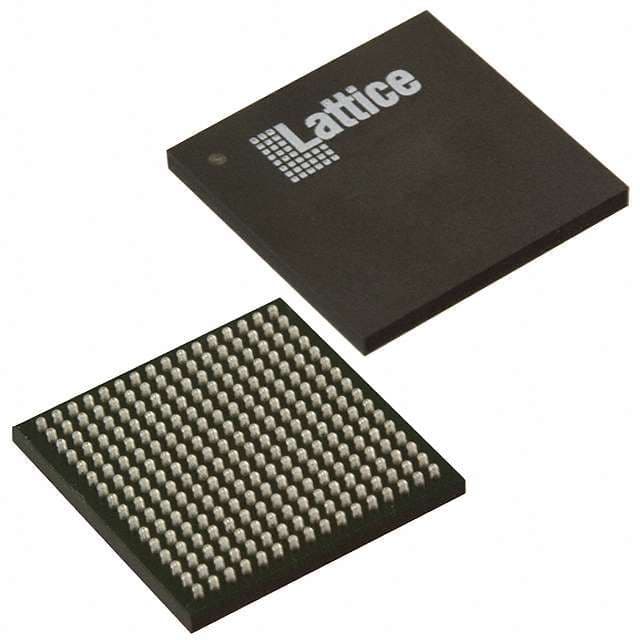

Product Images
