Lattice Semiconductor
LCMXO2-7000HE-6TG144C
Field Programmable Gate Array, 6864-Cell, CMOS, PQFP144, TQFP-144
Frequency388MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2-7000HE-6TG144C technical specifications.
General
Package/Case
TQFP
Lead Free
Lead Free
Max Frequency
388MHz
Max Operating Temperature
85°C
Memory Size
550Kb
Min Operating Temperature
0°C
Mount
Surface Mount
Number of Gates
6864
Number of I/Os
114
Number of Logic Blocks (LABs)
858
Number of Logic Elements/Cells
6864
Operating Supply Current
189uA
Operating Supply Voltage
1.2V
Package Quantity
60
Packaging
Tray
RAM Size
245760b
RoHS Compliant
Yes
Series
MachXO2
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LCMXO2-7000HE-6TG144C Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2-7000HE-6TG144C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

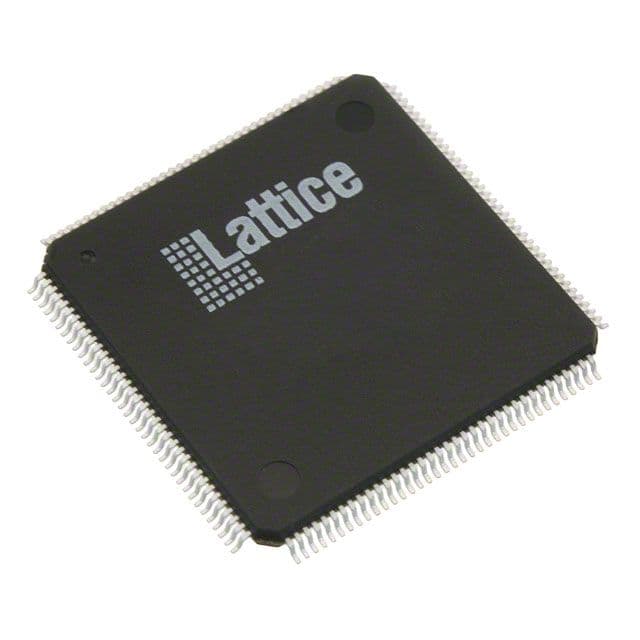

Product Images
