CMOS Flash PLD featuring 2280 logic elements and 1140 macrocells. Offers 271 programmable I/Os, 285 logic blocks, and 35.3Kb of SRAM with 28262.4b RAM size. Operates at a maximum frequency of 500MHz with a 5.1ns propagation delay. Supports a supply voltage range of 1.71V to 3.465V, with a typical operating voltage of 3.3V. Surface mountable in an LBGA package, suitable for 0°C to 85°C operating temperatures.
Frequency500MHz
PackageLBGA
Current23mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO2280C-3FT324C technical specifications.
General
Package/Case
LBGA
Lead Free
Lead Free
Max Frequency
500MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.465V
Memory Size
35.3Kb
Memory Type
SRAM,
Min Operating Temperature
0°C
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of I/Os
271
Number of Logic Blocks (LABs)
285
Number of Logic Elements/Cells
2280
Number of Macrocells
1140
Number of Programmable I/O
271
Operating Supply Current
23mA
Operating Supply Voltage
3.3V
Package Quantity
84
Packaging
Tray
Propagation Delay
5.1ns
RAM Size
28262.4b
RoHS Compliant
No
Series
MachXO
Supply Current
23mA
Compliance
RoHS
Not Compliant
Datasheet
Lattice Semiconductor LCMXO2280C-3FT324C Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO2280C-3FT324C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

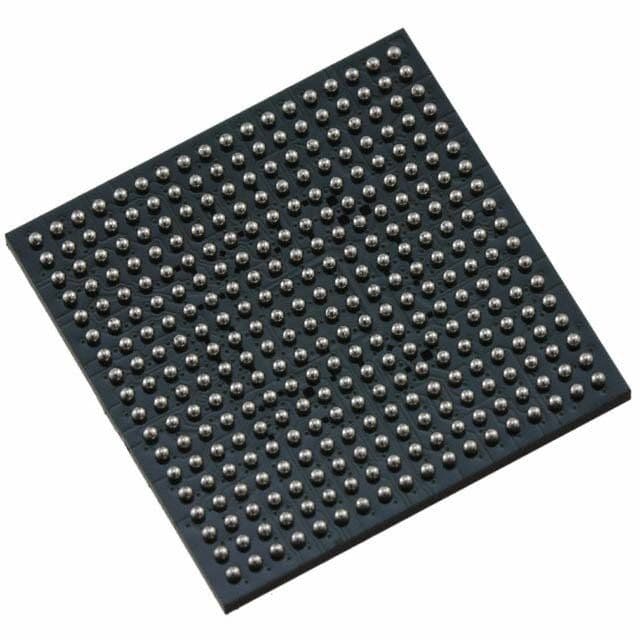

Product Images
