Complex Programmable Logic Device (CPLD) featuring 128 macrocells and 256 logic elements. This surface mount component operates with a 3.3V supply voltage, supporting 1.71V to 3.465V, and offers 78 I/Os. Achieving frequencies up to 500MHz with a propagation delay of 4.9ns, it includes 2Kb of SRAM memory. Packaged in a 100-pin TQFP tray, this RoHS compliant device is suitable for operation between 0°C and 85°C.
Frequency500MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LCMXO256C-3TN100C technical specifications.
General
| Package/Case | TQFP |
| Density | 2Kb |
| Frequency | 500MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 2Kb |
| Memory Type | SRAM, |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of I/Os | 78 |
| Number of Logic Blocks (LABs) | 32 |
| Number of Logic Elements/Cells | 256 |
| Number of Macrocells | 128 |
| Operating Supply Current | 13mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Propagation Delay | 4.9ns |
| Radiation Hardening | No |
| RAM Size | 0b |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MachXO |
| Termination | SMD/SMT |
| Turn-On Delay Time | 4.9ns |
| Weight | 0.023175oz |
Compliance
| RoHS | Compliant |
Datasheet
Lattice Semiconductor LCMXO256C-3TN100C Datasheet
Download the complete datasheet for Lattice Semiconductor LCMXO256C-3TN100C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

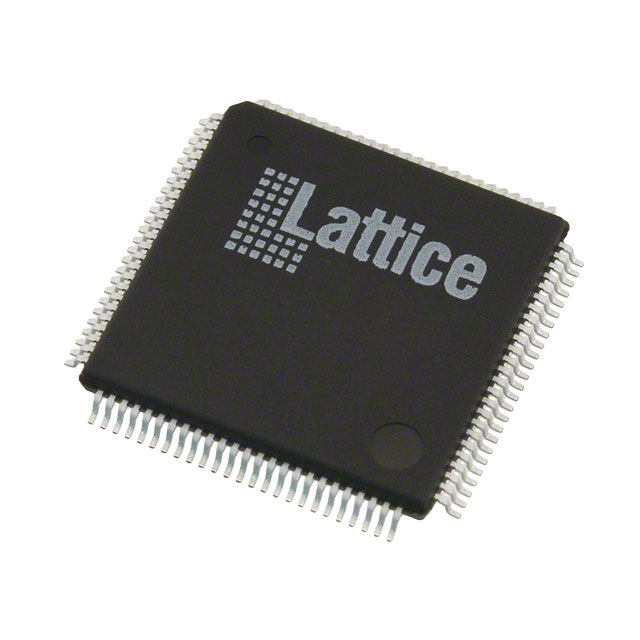

Product Images
